Siemens S7-1200 Not Communicating with HMI – Complete Troubleshooting Guide

20 апрель 2026 г.

Introduction

In industrial automation systems, communication between Siemens S7-1200 PLC and HMI (Human Machine Interface) is critical for real-time monitoring and control.

However, engineers often face issues where the PLC and HMI fail to communicate properly. This can result in system downtime, production delays, and debugging challenges.

In this guide, we will break down the most common causes and step-by-step troubleshooting methods used by industrial engineers to quickly resolve Siemens S7-1200 communication failures.

1. Common Causes of Siemens S7-1200 and HMI Communication Failure

Most communication issues fall into a few key categories:

1. IP Address Mismatch

· PLC and HMI must be in the same subnet

· Incorrect IP settings are the most common issue

2. Incorrect TIA Portal Configuration

· HMI not properly linked to PLC tags

· Wrong PLC station selected in project

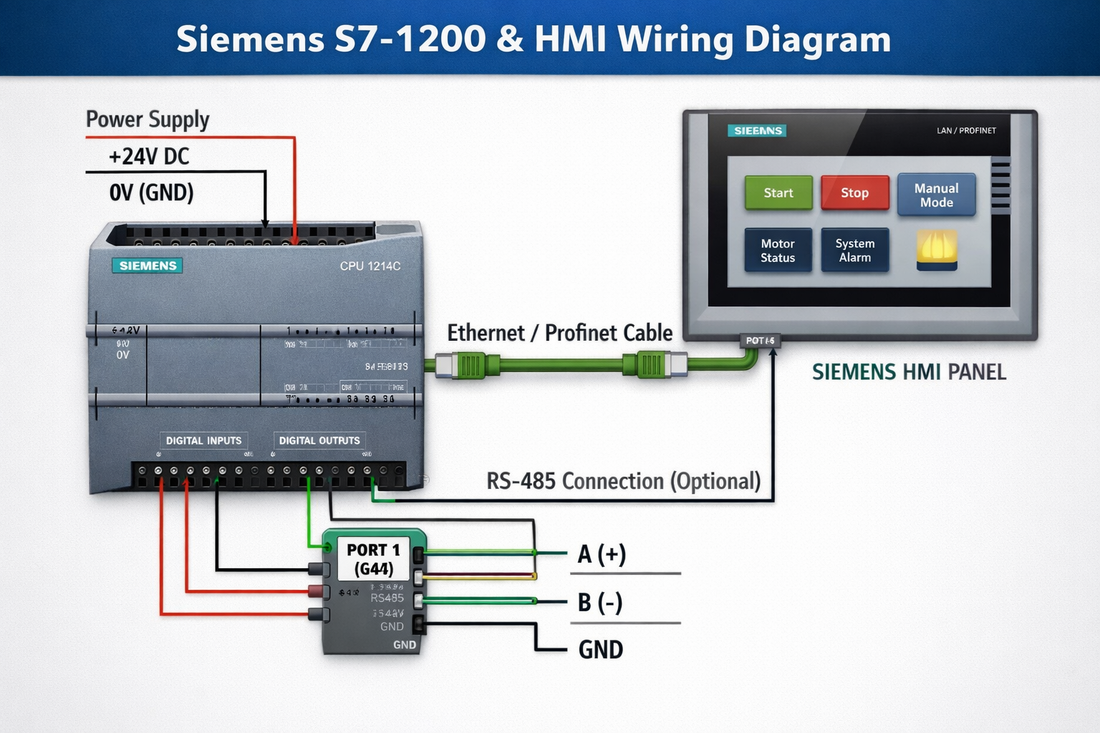

3. Physical Connection Issues

· Loose Ethernet cable

· Damaged RJ45 connector

· Switch port failure

4. Firewall or Network Blocking

· Industrial network firewalls blocking communication

· Incorrect routing in complex systems

2. Step-by-Step Troubleshooting Process

Follow this structured engineering approach:

Step 1: Check Physical Connection

· Ensure Ethernet cable is properly connected

· Replace cable if necessary

· Verify switch indicators are active

Step 2: Verify IP Configuration

In TIA Portal:

· Check PLC IP address

· Check HMI IP address

· Ensure both devices are in same subnet (example: 192.168.0.xxx)

Step 3: Test Ping Connection

From engineering PC:

· Ping PLC IP address

· Ping HMI IP address

If ping fails → network issue exists

Step 4: Check TIA Portal Project Configuration

(If you are facing issues when uploading or downloading programs, you can also refer to our detailed guide on fixing TIA Portal upload/download errors.)

· Ensure correct PLC is selected

· Verify HMI tags are correctly linked

· Recompile project

Step 5: Download Project Again

· Re-download PLC program

· Re-download HMI configuration

· Restart both devices

3. Advanced Engineering Diagnosis

If the issue persists, engineers typically check:

PLC Status Check

· CPU RUN/STOP mode

· Diagnostic buffer in TIA Portal

Communication Protocol

· Ensure PROFINET is enabled

· Check device name consistency

Hardware Diagnostics

· Replace communication module if necessary

· Test PLC with another HMI

4. Real-World Engineering Fix Case

In many industrial cases, the issue is resolved by:

· Correcting IP mismatch between PLC and HMI

· Rebuilding TIA Portal project

· Resetting PLC communication memory

· Replacing damaged Ethernet cable

5. How to Prevent This Problem in Future

To avoid repeated communication failures:

· Standardize IP addressing rules in factory

· Use labeled network diagrams

· Backup TIA Portal projects regularly

· Avoid mixing different firmware versions

6. When You Need Replacement Hardware

If communication failure is caused by hardware damage, common replacement parts include:

· Siemens S7-1200 CPU modules

· PROFINET communication modules

· Industrial Ethernet switches

· HMI panels
