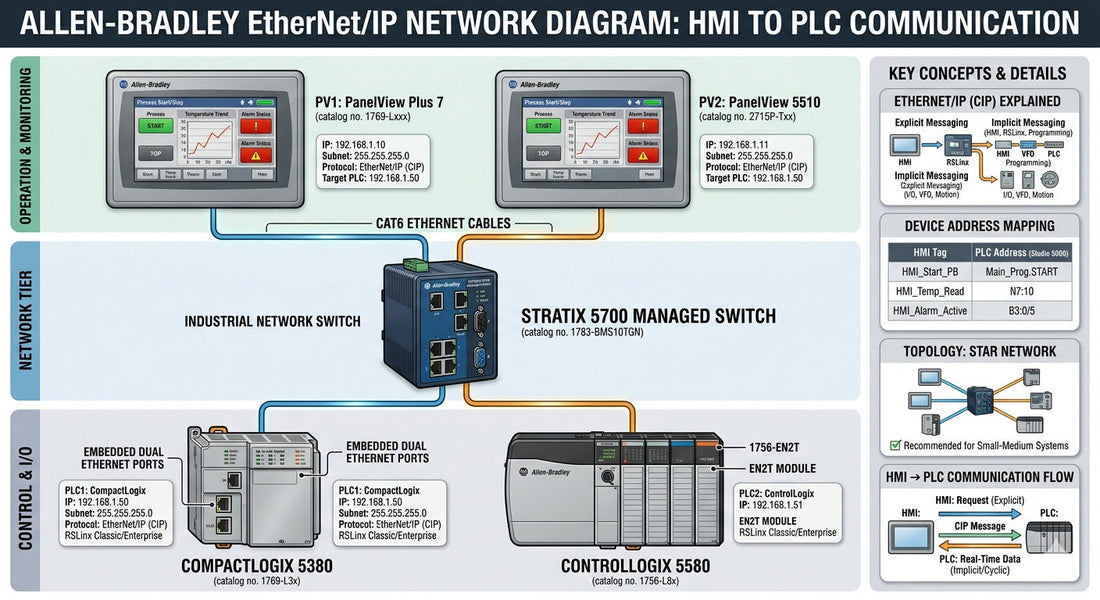

hmi to plc ethernet ip network diagram allen bradley

How to Connect HMI to Allen-Bradley PLC (Step-by-Step Guide)

Connecting an HMI to an Allen-Bradley PLC is essential for industrial visualization and control. This guide explains the basic setup process.

For overall system understanding, you can also read our Allen-Bradley PLC guide.

Step 1: Configure PLC IP Address

Ensure PLC is properly configured in Studio 5000.

If your system is not communicating properly, check our PLC communication troubleshooting guide.

Step 2: Set Up HMI Communication

Use EtherNet/IP protocol for communication.

For detailed network setup, refer to our EtherNet/IP configuration guide.

panelview plus hmi configuration compactlogix plc setup

Step 3: Tag Mapping

Map PLC tags to HMI display variables.

Tag configuration is done inside Studio 5000. See our Studio 5000 setup guide.

allen bradley plc hmi tag mapping studio 5000

Step 4: Test Communication

Verify real-time data exchange between devices.

Common Issues

  • IP mismatch
  • Tag mismatch
  • Firewall blocking

Conclusion

Proper HMI-PLC integration ensures efficient monitoring and control of industrial systems.
