When a PLC is not communicating with an HMI, it can stop production, delay projects, and cause serious downtime in industrial automation systems.
The good news is that most PLC-HMI communication problems are easy to diagnose if you follow a structured troubleshooting process.
Quick Answer: Why PLC Is Not Communicating with HMI
If your PLC is not communicating with HMI, the most common causes are:
- Incorrect IP address or network configuration
- Damaged or loose Ethernet cable
- PLC not in RUN mode
- Incorrect HMI settings or tag configuration
- Network conflicts or firewall blocking
Follow the step-by-step guide below to fix the issue quickly.

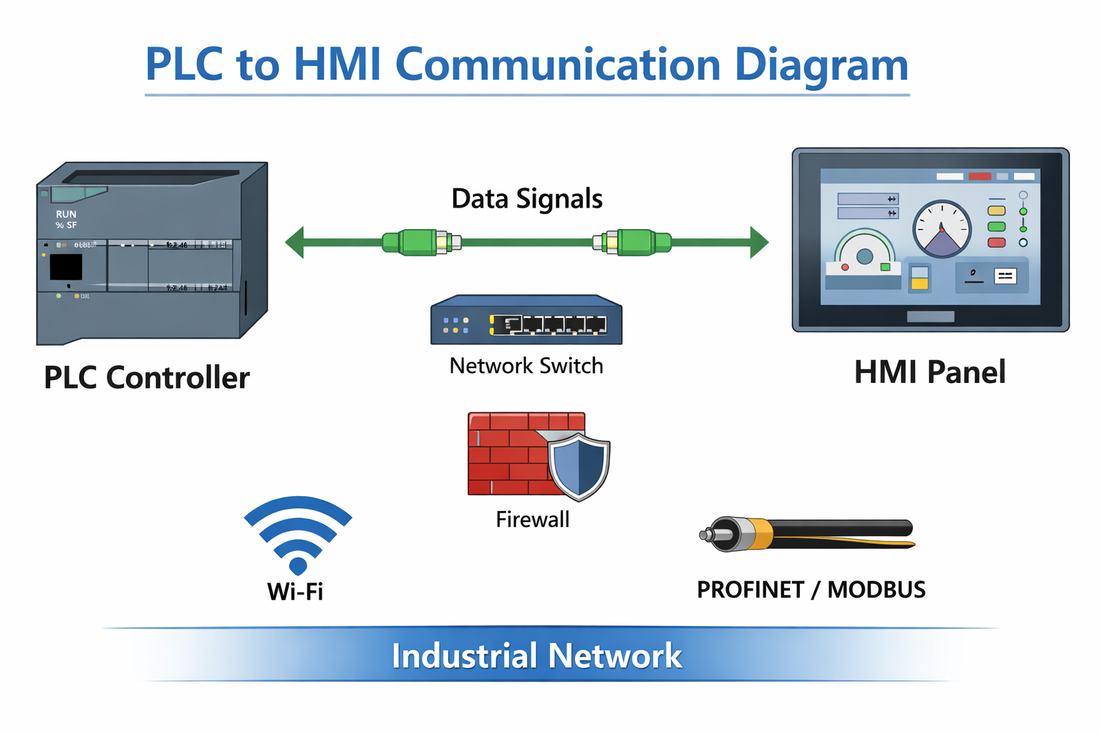

PLC to HMI Communication Diagram
This basic structure shows how a PLC connects to an HMI through an industrial network. Any issue in this chain can break communication.
Step-by-Step PLC-HMI Troubleshooting Guide
Step 1: Check Physical Connection
- Ensure Ethernet cable is connected properly
- Check for damaged cables
- Try a replacement cable
Step 2: Verify IP Configuration
- Check PLC IP address
- Check HMI IP address
- Ensure both are in the same subnet
Step 3: Check PLC Status
- Confirm PLC is powered ON
- Ensure it is in RUN mode
Step 4: Review HMI Settings
- Verify PLC model selection
- Check tag address mapping
Step 5: Test Network Communication
- Use ping test
- Check network switch
- Scan for IP conflicts
Common PLC-HMI Communication Problems
| Problem | Possible Cause | Solution |
|---|---|---|
| No connection | Wrong IP address | Reconfigure IP settings |
| Intermittent communication | Network instability | Check cables and switch |
| HMI offline | Incorrect configuration | Verify tags and protocol |
Brand-Specific Communication Tips
Siemens PLC Communication Issues
- Check Profinet settings in TIA Portal
- Verify device configuration
Allen-Bradley PLC Communication Issues
- Check Ethernet/IP configuration
- Verify RSLogix settings
Tools for Diagnosing PLC Communication Problems
- Ping test (basic network check)
- TIA Portal diagnostics (Siemens)
- Network scanner tools
When Should You Replace PLC or HMI?
In some cases, communication issues are caused by hardware failure or outdated equipment.
You may need replacement if:
- Repeated communication failure
- Hardware damage
- Outdated firmware
At bxlyplc.com, we supply:
- Siemens PLC
- Allen-Bradley PLC
- Industrial HMI panels
👉 Contact us for fast support and global delivery.
Related Guides
FAQ
Why is my PLC online but HMI offline?
This is usually caused by configuration mismatch or incorrect tag settings.
Can a bad cable cause PLC communication failure?
Yes, damaged or loose cables are one of the most common causes.
How do I test PLC communication?
You can use a ping test or diagnostic tools to verify network connectivity.
Can firmware mismatch cause communication issues?
Yes, incompatible firmware versions may prevent devices from communicating properly.
Conclusion
PLC and HMI communication issues are common in industrial automation, but most can be fixed quickly with the right troubleshooting steps.
By following this guide, you can identify the root cause and restore your system efficiently.
